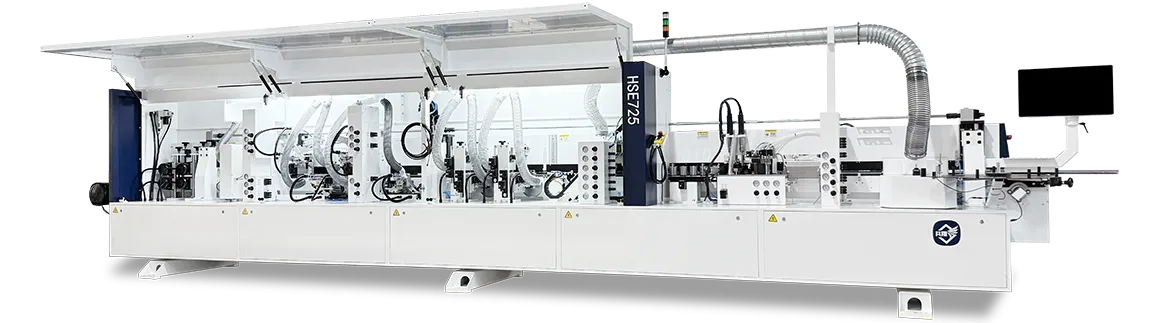

HSE725
Premium All-in-one Straight Edge Banding Machine
Contact Us
View Video
Clean
Manufacturing
Stable
& Adjustable
Energy
-Saving & Eco
Technical Parameters
Parameter
Value
workpiece dimensions
Min. Length*Width： 150mm*40mm
Main Rated Power
19.2KW
Board Spacing
≥550mm
Rated Power of Glue Machine
9KW
workpiece Thickness
9-50mm
Control cabinet voltage
DC24V
Feed Rate
18～25m/min (Low Speed End Trimming)
Working Air Pressure
≥0.6Mpa
workpiece Overhang
21mm
Operational Height
930mm
Edge Banding Thickness
0.4～1.5mm （Customizable upon special request）
WEIGHT
≈3700KG
Overall dimensions
L×W×H=8570×1030×1720mm
Process Flow
Separating agent spraying unit
Jointing trimming unit
Preheating unit
PUR gluing unit
Gluing unit
Precision edge banding feeding
Pressing unit
Snipping unit
Snipping unit
Trimming unit 1
Trimming unit 2
Profile trimming unit
Profile scraper unit
Clean agent spraying unit
Flat scraper unit
Finishing unit 1
Finishing unit 2
Other Recommendations
HSE755Max
Premium Multi-functional Intelligent Straight Edge Bander
HSE726C Laser
Premium Multi-functional Intelligent Straight Edge Bander
HSE726Laser
Premium Multi-functional Intelligent Straight Edge Bander
HSE725Max Laser
Premium Multi-functional Intelligent Straight Edge Bander
HSE725C Laser
Premium Versatile Smart Diamond Straight Edge Bander

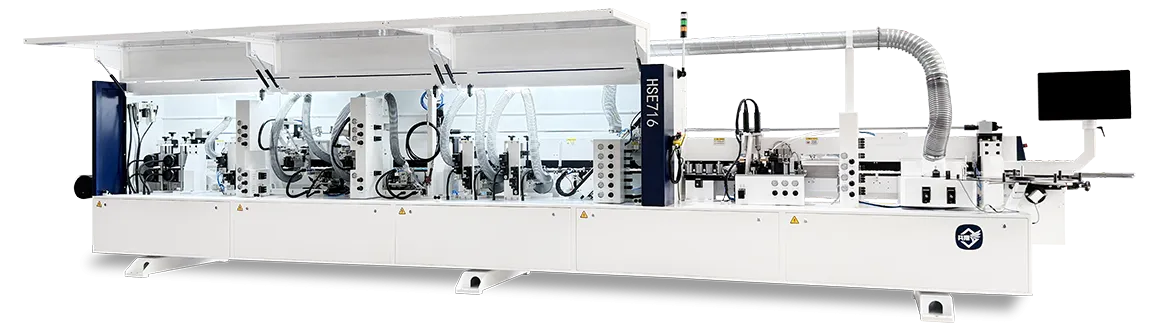

HSE716
