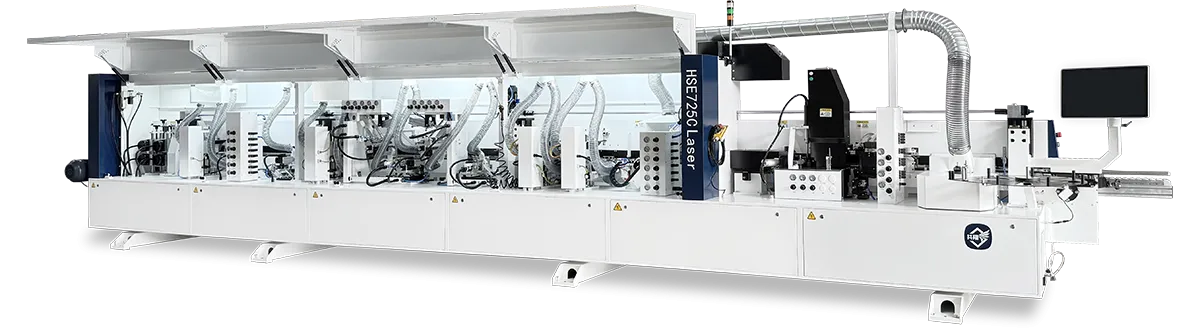

HSE725C Laser
Premium Versatile Smart Diamond Straight Edge Bander
Contact Us
Clean
Manufacturing
Stable
& Adjustable
Energy
-Saving & Eco
Technical Parameters
Parameter
Value
workpiece dimensions
Min. Length*Width： 150mm*40mm
Main Rated Power
22.8KW
Board Spacing
≥550mm
Rated Power of Glue Machine
9KW
workpiece Thickness
9～50mm(PUR) 9～42mm(Laser)
Rated Power of Laser
13KW
Feed Rate
18～25m/min (Low Speed End Trimming、Diamond Bevel Corner Rounding ≤22m/min)
Control cabinet voltage
DC24V
workpiece Overhang
25mm
Working Air Pressure
≥0.6Mpa
Edge Banding Thickness
0.4～1.5mm （Customizable upon special request）
Operational Height
930mm
Overall dimensions
L×W×H=10050×1030×1720mm
WEIGHT
≈4500KG
Process Flow
Separating agent spraying unit
Jointing trimming unit
Preheating unit
PUR gluing unit
Gluing unit
Laser unit
Precision edge banding feeding
Pressing unit
Snipping unit
Snipping unit
Trimming unit 1
Trimming unit 2
Profile trimming unit
Profile scraper unit
Clean agent spraying unit
Flat scraper unit
Finishing unit 1
Finishing unit 2
